XTIRPA™ 610 - Manhole Guard System EN795B
Portable 2-piece Davit system (arm reach 381-610mm) for safe manhole entry. Offers fall protection and rescue for 2 persons.
Watch this product and we will notify you once it is back in stock.
XTIRPA™ 610 - Manhole Guard System EN795B
Portable 2-piece Davit system (arm reach 381-610mm) for safe manhole entry. Offers fall protection and rescue for 2 persons.
Description
Manhole guard systems are used when an exposed entry point needs to be guarded. This portable system made of aluminium has an integrated mast which is used in conjunction with a davit arm to provide fall protection, entry and retrieval capabilities. The manhole guard system facilitates access to underground chambers or any other type of confined spaces where an entry point should be protected. Adjustable arm reach 381-610mm and lifting height 1993-2413 mm. Maximum load 1 person 164kg in the winch system + 1 person max 164kg in the separate anchor point on the davit arm. The foldable guardrail measures: LxWxH 922 x 947 x 1133 mm.
Complement with any of our fall arrest blocks with built-in rescue winch, do not forget the winch bracket. It is an optimal solution where you climb up / down yourself and need fall protection and rescue in one and the same solution. If you need to lift / lower someone hanging in a harness or bosuns chair, you must supplement the fall arrest block with a man riding winch. The winch itself on the fall arrest blocks is only for rescue in an emergency, and not intended for lifting a person for work purposes.
Certification
EN 795 Type B
TS 16415
Related products
-
XTIRPA Bracket for Blocfor 20R
Bracket for fastening Blocfor 20R to XTirpa systems.
IN-2424
4 859,00 SEK / pc.- Stock status
- 2 pc. in stock
-
XTirpa Bracket for Blocfor 30R
Bracket for fastening Blocfor 30R to XTirpa systems.
IN-2425
6 208,00 SEK / pc.- Stock status
- 1 pc. in stock
-
Man Riding Winch PLW 30m
Winch with stainless steel cable, designed for lifting 1 person max 150 kg or material max 300 kg.
41-PLW
19 423,00 SEK / pc.- Stock status
- 1 pc. in stock
-
XTirpa Bracket for IKAR PLW winch
XTirpa bracket for installing IKAR PLW winch on Davit system
IN-2211
3 850,00 SEK / pc.- Stock status
- 0 pc. in stock
-
Winch LokHead™ 500kg (no rope)
LokHead™ winch is a portable or fix-mounted load-lifting (500kg), personal-hoisting (240kg) winch used with an unlimited length of rope.
INLH500KIT
24 976,00 SEK / pc.- Stock status
- 1 pc. in stock
-
XTirpa Bracket for INLH500 winch
Bracket for fastening LokHead winch to XTirpa systems.
IN-2464
6 685,00 SEK / pc.- Stock status
- 1 pc. in stock
-

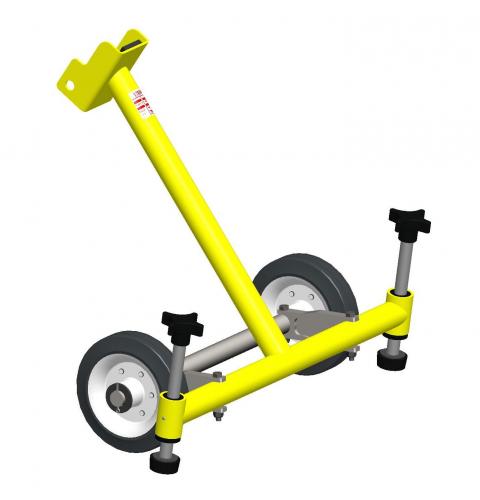

XTirpa 610 - Manhole Guard Stabilizer with wheels
