Tripod kit Tripos 2
A system that offers a temporary anchorage point, fall arrest system, rescue lifting device, and personnel lifting. EN795/B, EN360, EN1496/A & B.
3 lengths
Watch this product and we will notify you once it is back in stock.
Tripod kit Tripos 2
A system that offers a temporary anchorage point, fall arrest system, rescue lifting device, and personnel lifting. EN795/B, EN360, EN1496/A & B.
Description

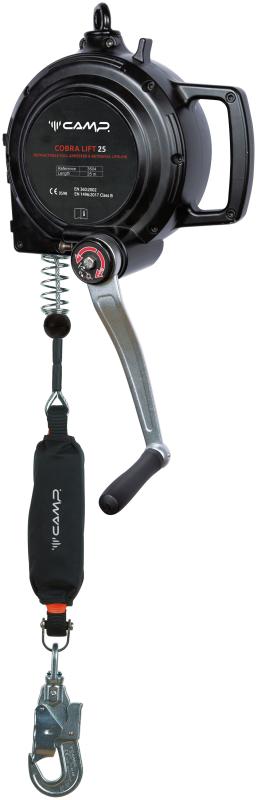

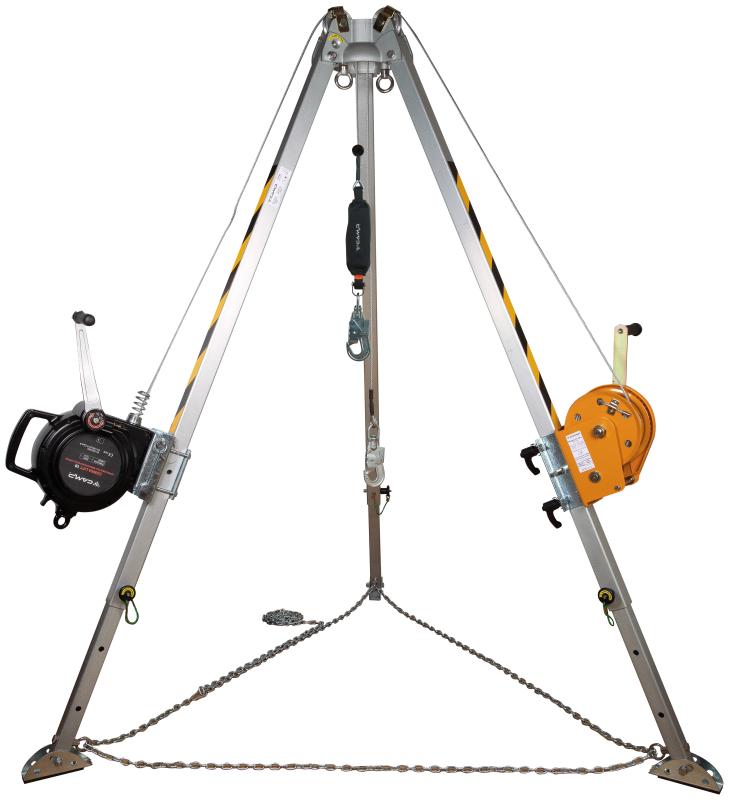

Complete tripod kit that covers many different needs, such as fall arrest, rescue and personal lifting. Intended for work in confined spaces such as wells, tanks, silos, etc. Comes complete with tripod, personal lifting winch and fall arrest block with integrated rescue winch.

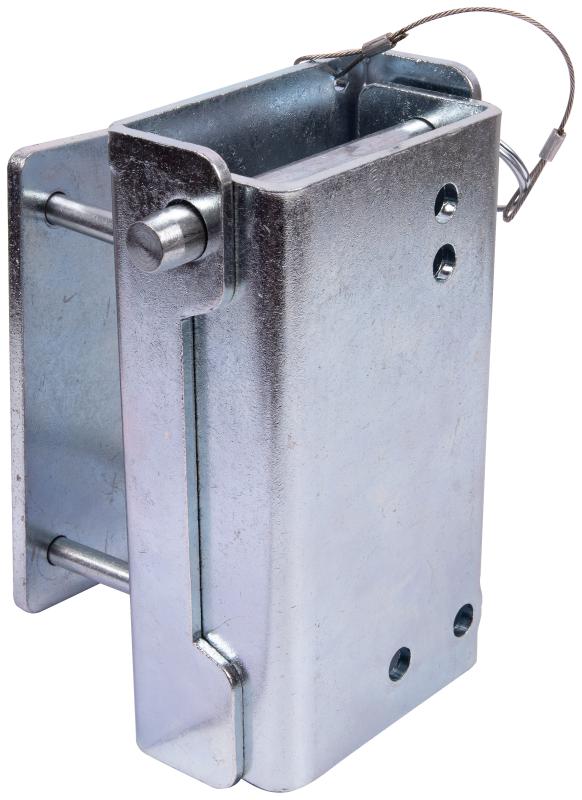

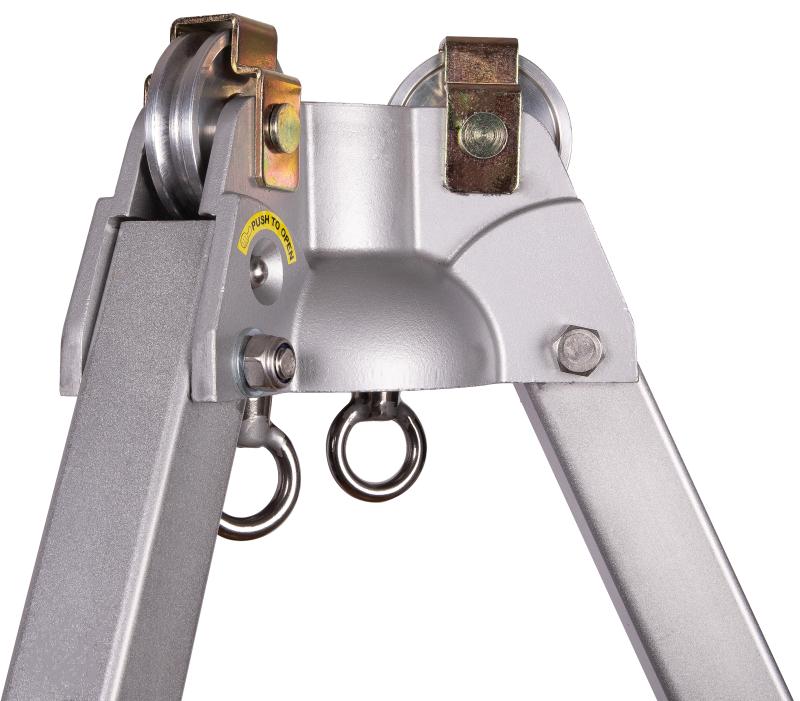

The kit is easy to handle and fold together, and is small enough to be transported in smaller vehicles. Quick connectors for mounting / disassembling winch and fall arrest block. Dual pulleys in the top that lead cable from the winch and fall arrest block. Adjustable telescopic legs with several positions for optimal fit. Two anchor points at the top for fall arrest equipment max 150 kg / each.
Technical data
Adjustable lifting height Tripod: 135 - 240 cm
Fits hole diameter: 114 - 210 cm.
Max load lifting winch: 1 person 150 kg.
Max load fall arrest block: 1 person 150 kg.
Length folded: 175 cm.
User manuals, certificates etc. can be found on individual components, click on the links under "Kit content".
Standard
EN 795 Type B
EN 1496 Class A and B
EN 360
CEN/TS 16415
