Name: Davitrac Wall mounted base
Brand: Tractel
SKU: 210118
Price: 5619 SEK
Availability: InStock

5 619,00 SEK / pc.

Quantity

pc.

Product added to basket.

To checkout 1

Stock status: 3 pc. in stock
Article SKU: 210118
Manufacturer article no: 210118
Weight: 13.7 kg
Manufacturer: Tractel

Document

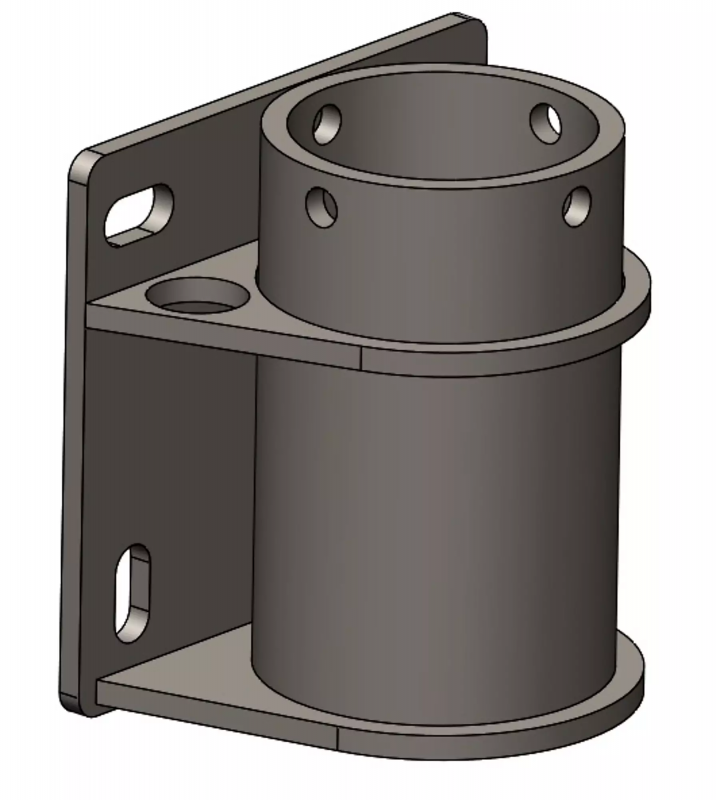

Davitrac Wall mounted base

Permanent wall base for Davitrac. Installed on concrete or steel.

Description
The Clearance mural base is exclusively intended to be installed with the Davitrac. This base allows the Davitrac to be installed at any point on a vertical surface. It is equipped with 2 PPE anchoring points 150 kg/each. A maximum of 2 operators can be secured when installing the Davitrac. The base is fixed to the structure with 4 heavy duty chemical anchors with a diameter of 16 mm. It can be installed without any specific tools and is quick and easy to install. It allows the Davitrac to rotate 360° in relation to its axis. Minimum tensile strength of each fasterner : 12kN.

Certification
EN 795 Type A
CEN/TS 16415: Fall arrest anchor point for more than 1 person (2 persons x 150 kg each)
2006/42/CE: Anchor lifting point in accordance with the machine directive (WLL 500kg)
